Compression Fittings

Note: Size is for reference only. We can provide any customized size.

Our brass compression fittings ensure leak-free connections in plumbing and hydraulic systems.

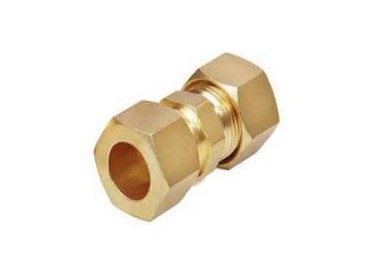

Union

Size: (Tube OD) : 1/8″ 3/16″ 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 5/8″ 3/4″ 7/8″

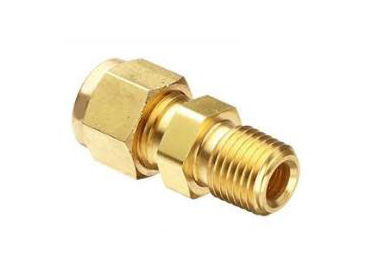

Male Connector

Size: (Tube OD X Pipe size) : 1/8″ X 1/8″ to 3/4″ X 3/4″

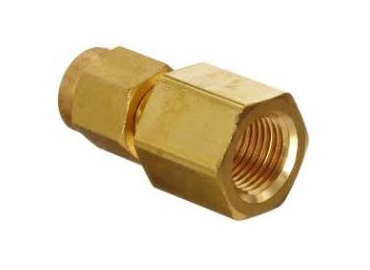

Female Connector

Size: (Tube OD X Pipe Size) : 1/8″ X 1/8″ to 3/4″ X 3/4″

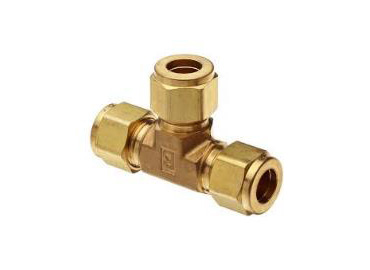

T- Union

Size: (Tube OD) : 1/8″ 3/16″ 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 5/8″ 3/4″ 7/8″

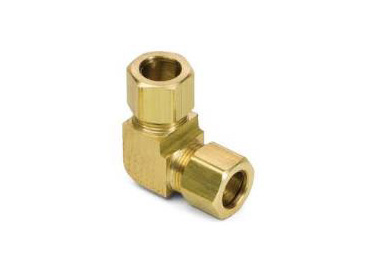

Elbow Union

Size: (Tube OD) : 1/8″ 3/16″ 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 5/8″ 3/4″ 7/8″

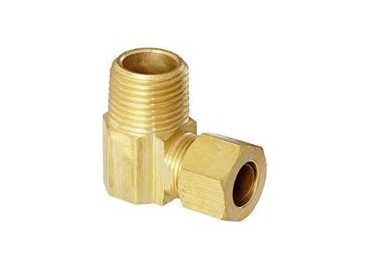

90 Male Elbow-Union

Size: (Tube OD X Pipe size) : 1/8″ X 1/8″ to 3/4″ X 3/4″

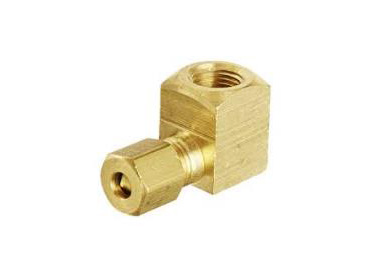

90 Female Elbow Union

Size: (Tube OD X Pipe size) : 1/8″ X 1/8″ to 3/4″ X 3/4″

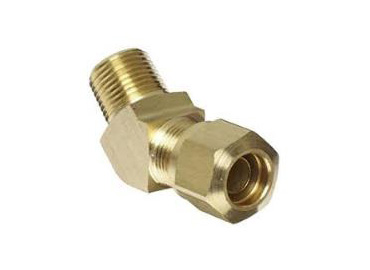

45° Male Elbow

Size: (Tube OD X Pipe size) : 3/16″ X 1/8″ to 5/8″ X 1/2″

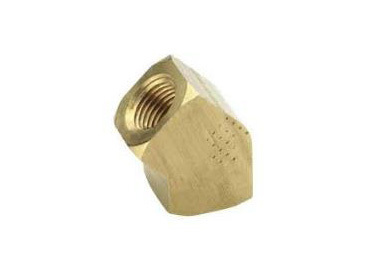

45° Female Elbow

Size: (Tube OD X Pipe size) : 3/16″ X 1/8″ to 5/8″ X 1/2″

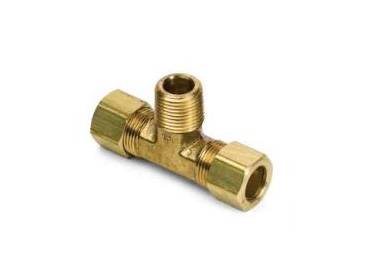

Union Branch Tee

Size: Tube OD X Pipe Size X Tube OD 1/8″ X 1/8″ X 1/8″ To 3/4″ X 3/4″ X 3/4″

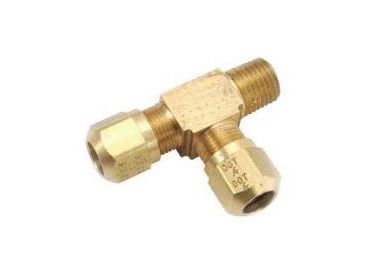

Union Run Tee

Size: (Tube OD X Pipe size) : 1/8″ X 1/8″ to 3/4″ X 3/4″

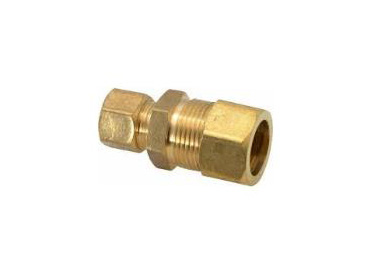

Reducing Union

Size: (Tube OD X Tube OD) : 1/4″ X 1/8″ To 3/4″ X 5/8″

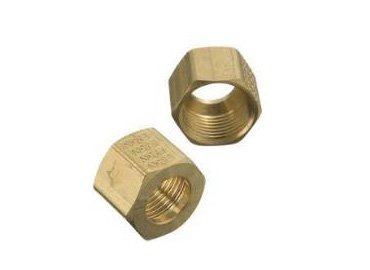

Nut

Size: (Tube OD) : 1/8″ 3/16″ 1/4″ 5/16″ 3/8″ 7/16″ 1/2″ 5/8″ 3/4″ 7/8″

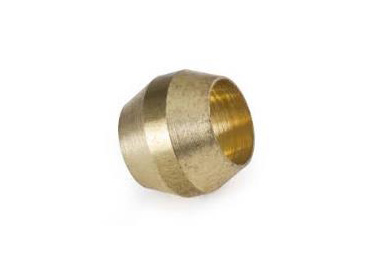

Ferrule/Sleeve

Size: 1/8″ 1/4″ 3/8″ 1/2″ 3/4″
